HITECH OILERS - PRODUCT RANGE.

Oil cups Threaded .(straight & elbow type)

Oilers (Straight & elbow type)

Press button oiler.

Revolving lid oilers.

Oil hole covers - Drive fit type

Grease nipples - Standard range

Oil nipple.











.

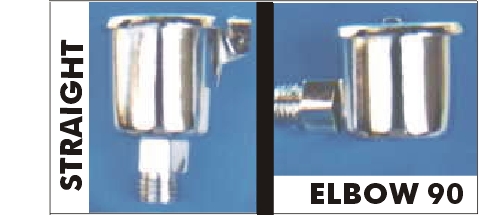

OIL CUP THREADED ( STRAIGHT & ELBOW )

It is used for continous lubrication to bushing ,bearings ,slides,through woolen wick drop from the cup.
Material of Construction: Steel Bright nickel Plated or Black.


Dia in Inches

1/2"

5/8"

3/4"

1"

11/4"

11/2"

2"

Size -BSP

1/8

1/8

1/8 ,1/4

1/4

1/4

1/4

1/4

Size-BSW

3/8

3/8

3/8 ,1/2

3/8 ,1/2

1/2

1/2

1/2

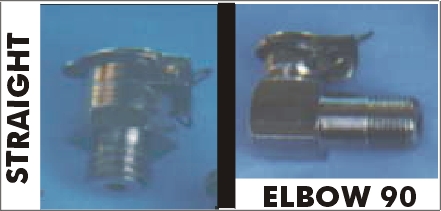

OILER ( STRAIGHT & ELBOW TYPE)


It is used for lubrication of machines slides, directly .Small lid protects oil hole from dust .Also a filter is provided inside to filter oil.
Material of construction :- Steel / Brass,Bright nickel plated


 Body Hole Size   x Threading size.

1/4 x 3/16 BSF/BSW

3/8 x 3/8 BSP

1/4 x 1/4 BSF/BSW

3/8 x 5/16 BSW

1/4 x 1/4 UNF/32TPI

1/4 x 6mm

1/4 x 5/16 BSF/BSW

1/4 x 8mm

1/4 x 5/16 UNI/32TPI

3/8 x 10mm




REVOLVING  LID OILER


This oiler has a rotating lid which provides conveniency in filling oil from any side.
suitable in compact locations.
It is provided with filter to clean oil.
Material of construction :- Steel / Brass bright nickel plated or black bright


 Body Hole size x Threading Size.

3/8 x 1/8 BSP

3/8 x 3/8 BSW

3/8 x 1/4 BSW

3/8 x 6mm

3/8 x 5/16 BSW

3/8 x 8mm



3/8 x 10mm




OIL HOLE COVER ( DRIVE FIT TYPE)


Special drive fit systems allow easy installation .No need to do tapping in the body , just drive fit the oiler.
This is used to protect oil hole form dust .Also a filter is provided inside to filter oil.
Material of Construction : Steel Bright Nickel plated.


 SIZE IN DIAMETER

1/4"

5/16"

3/8"

7/16"



GREASE NIPPLES / OIL NIPPLES/ GREASE CUPS / BALL VALVE

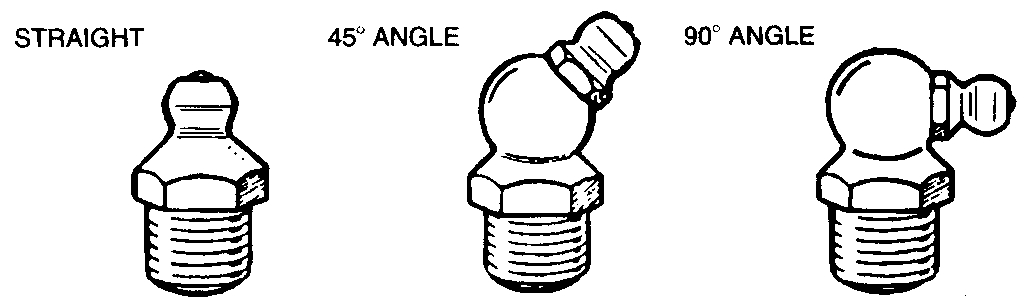

Grease nipples
Available in various Sizes of all types of threads ,Straight ,bend , 45 Degree, Pin type.
Material of Construction :steel /brass

Oil Nipple
Suitable for oil filling purpose available in various thread sizes.
Material of Construction :steel /brass Nickel plated or black zinc


BAll valve( Press button Oiler)
This is suitable for regular oiling at various point of machine.
Material of Construction :steel /brass Nickel plated


We can also develop design according to customers requirement or as per drawing / samples.
